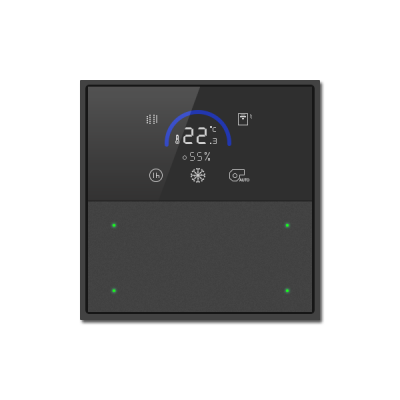

This thermostat can be used to control VRV air conditioning, floor
heating and fresh air. The panel installation method adopts the standard
86 box wall installation method.
The main functions are as follows:
Realize VRV air conditioning, floor heating and fresh air three-in-one system control
LCD display operation display function
Indoor temperature collection, temperature setting function
The VRV system can output four modes of cooling, heating, ventilation and dehumidification
The VRV system can output high, medium and low wind speeds as well as automatic wind speeds.
The floor heating system can output 1byte or 1bit control value according to the set temperature and actual temperature
The fresh air system can output high, medium and low wind speed functions as required.
All three systems are equipped with 4 sets of scene functions.
21...30 V DC, bus supplied
Bus current consumption
< 12 mA
Bus power consumption
Max. 360 mW
Auxiliary power consumption
Assign physical address
The red light allocates physical addresses, the green light flashes, and it runs normally
Reset screen display
86 bottom case installation
Length, width and height
– 5 °C ... + 45 °C
– 25 °C ... + 55 °C
– 25 °C ... + 70 °C
<93%, except for condensation
