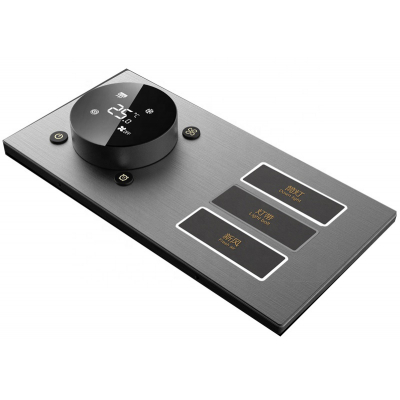

Knob thermostat function
Realize VRV air conditioning, floor heating and fresh air three-in-one system control
OLED display operation display function
Indoor temperature collection, temperature setting function
The VRV system can output four modes of cooling, heating, ventilation and dehumidification
The VRV system can output high, medium and low wind speeds as well as automatic wind speeds.
The floor heating system can output 1byte or 1bit control value according to the set temperature and actual temperature
The fresh air system can output high, medium and low wind speed functions as required.
All three systems are equipped with 4 sets of scene functions.
Triple 6-gang panel function
21-30V DC, obtained through EIB bus
EIB/KNX current consumption
EIB/KNX power consumption
Auxiliary power supply
Red LED and button
Programming physical address
Indicates that the application layer is working properly
–5°C ... 45°C
–25°C ... 55°C
–25°C ... 70°C
Embedded installation equipment
Standard 86 box wall mounting method
