4-fold curtain actuator

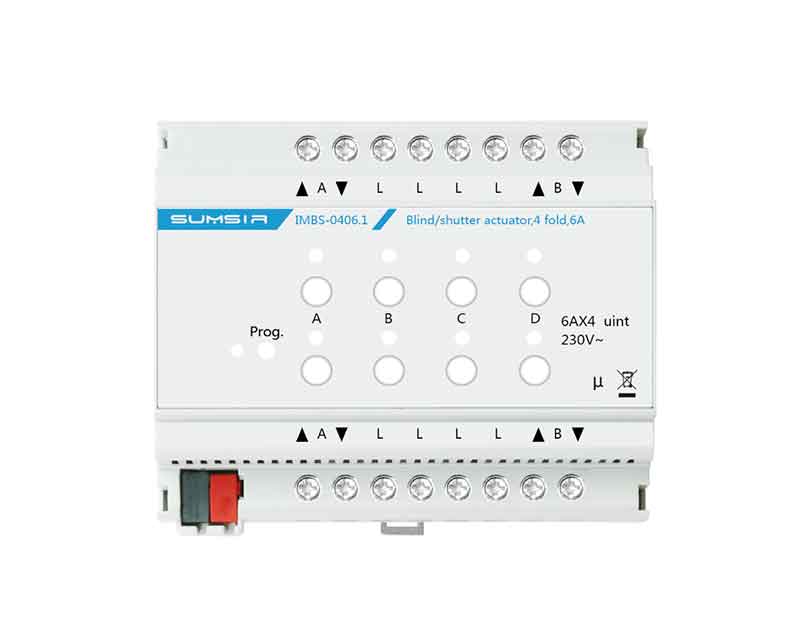

This product is a 4-fold curtain/blind switch actuator with standard EIB/KNX protocol. Access to the KNX system through standard EIB terminals, no additional power supply is required. The database can be imported into ETS3, ETS4 or ETS5 engineering software for programming. The product is designed as a modular installation device, which can be easily installed on a 35 mm D-shaped rail. The maximum load current of this product is 6A, suitable for opening and closing curtains and blinds control.
details
Two control modes of shutters and curtains
Move up/down
Stop/adjust blinds
Preset moving position
Set move to location
Adjust the shutter to position 0…100%
Scene function
Automatic sun protection
Periodic monitoring of wind, rain and frost protection
block
Mandatory operation
Current position status reply, current operation status reply
Manual operation and LED indication
