KNX 4 inch Smart Touch Screen Panel
High-definition IPS display, resolution 720*720 capacitive touch screen

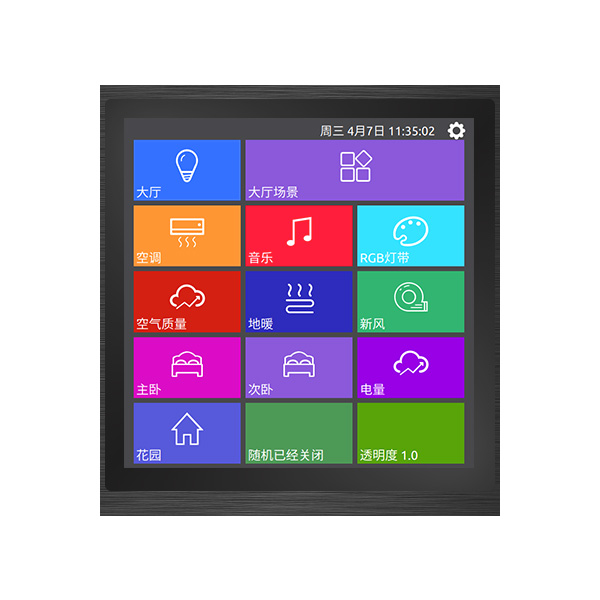

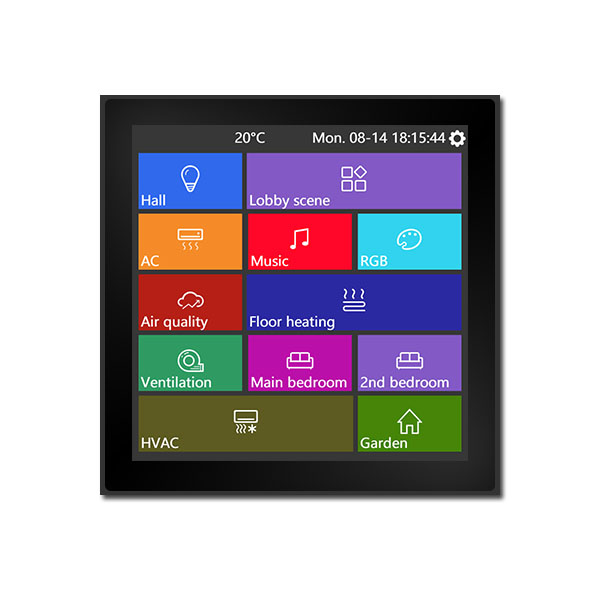

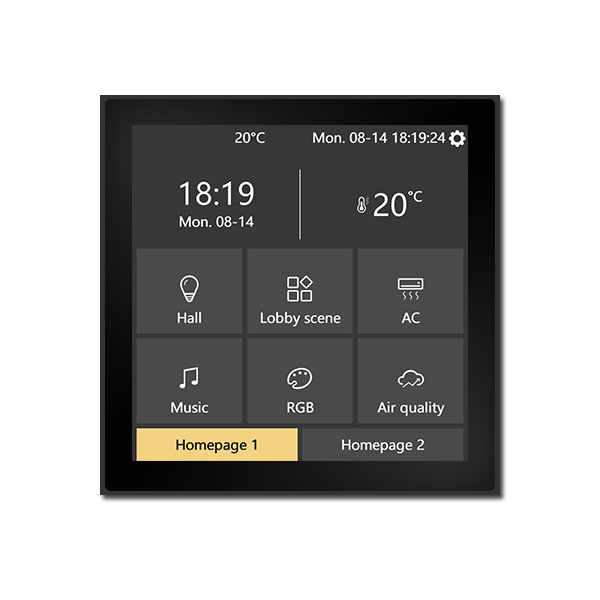

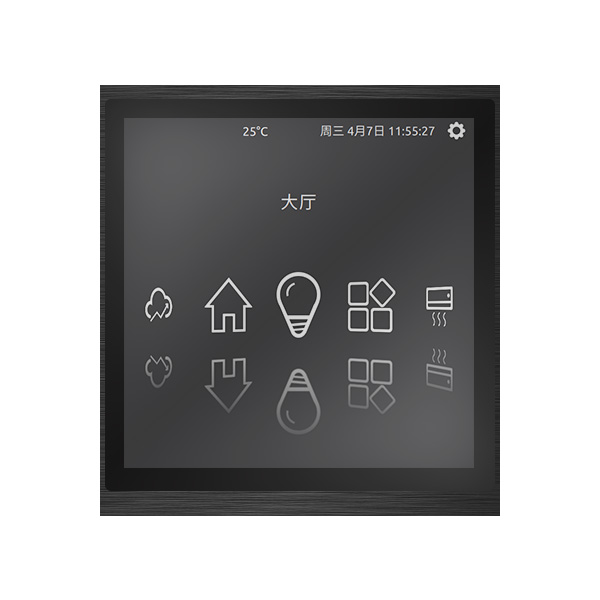

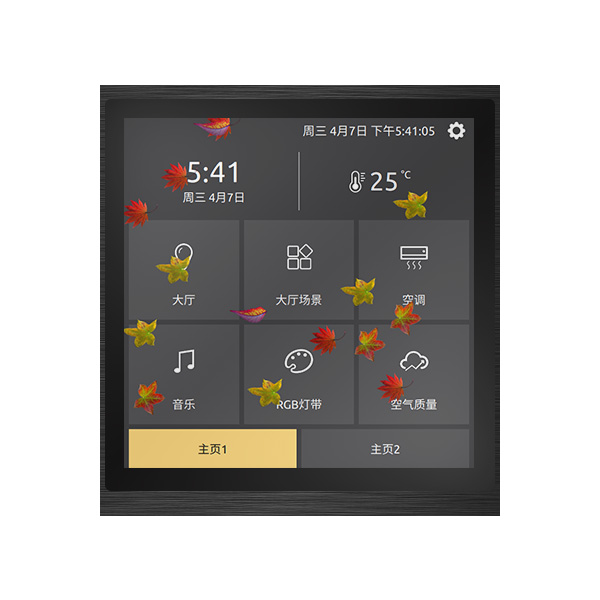

Multi-style homepage and sliding page dynamic switching, background and screen saver configurable

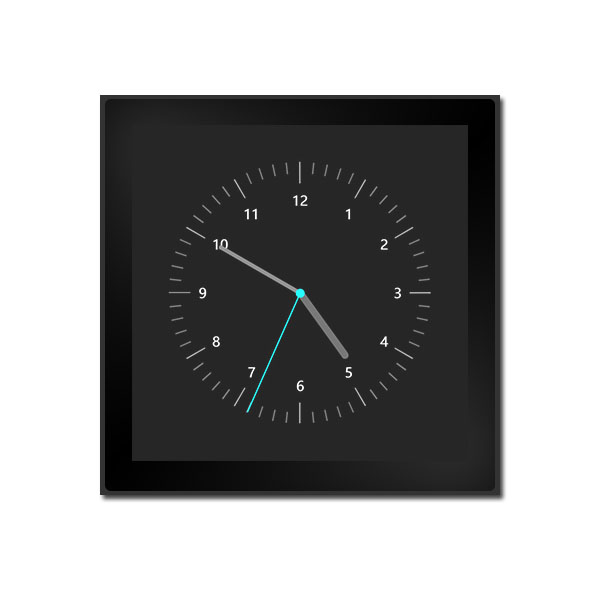

Time display and setting
Temperature display
With password lock screen function

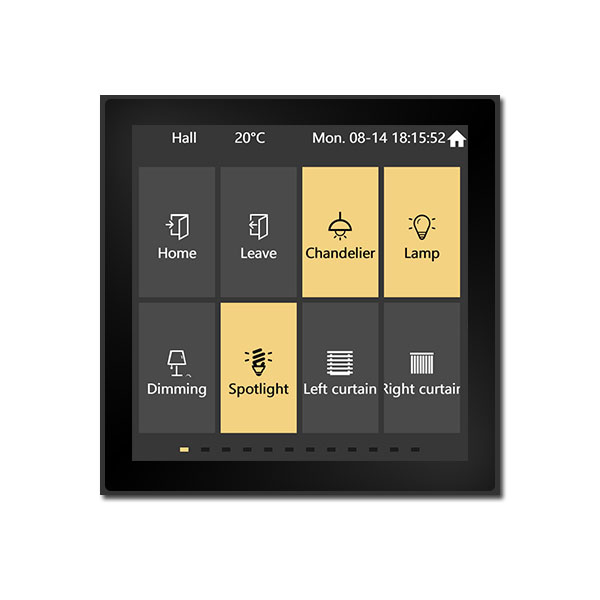

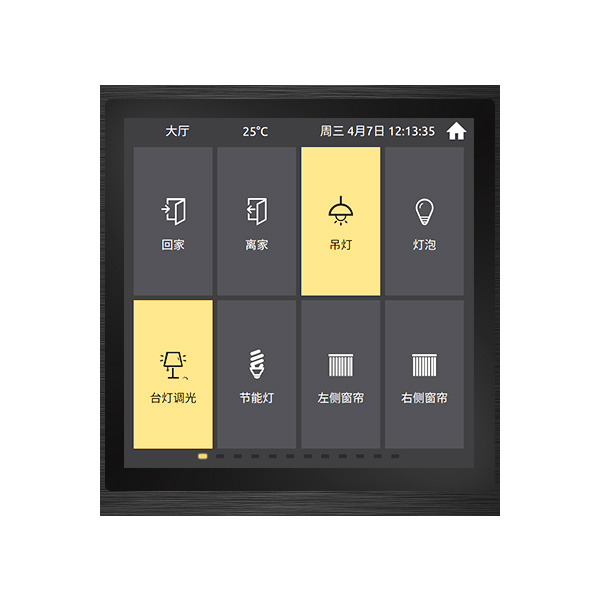

It can realize the functions of control switch, curtain, dimming and scene value sending

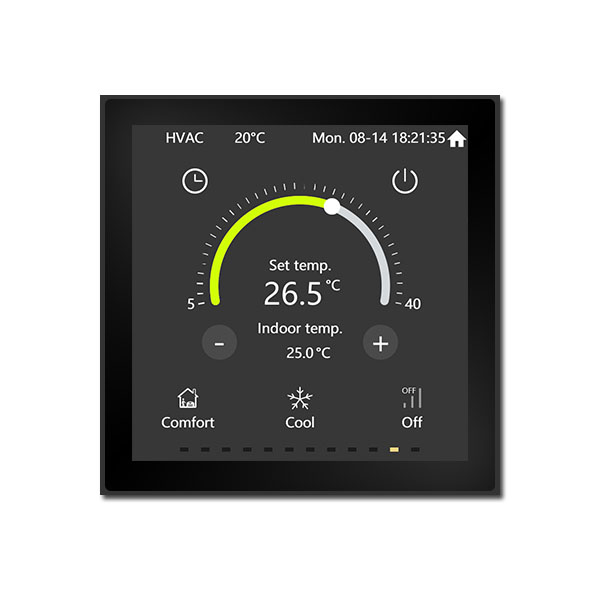

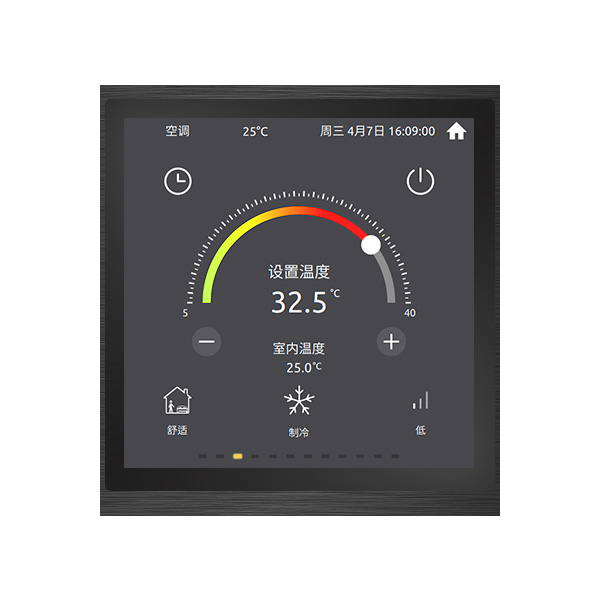

HVAC air conditioning control function
VRV air conditioning gateway control function
Fresh air system control function

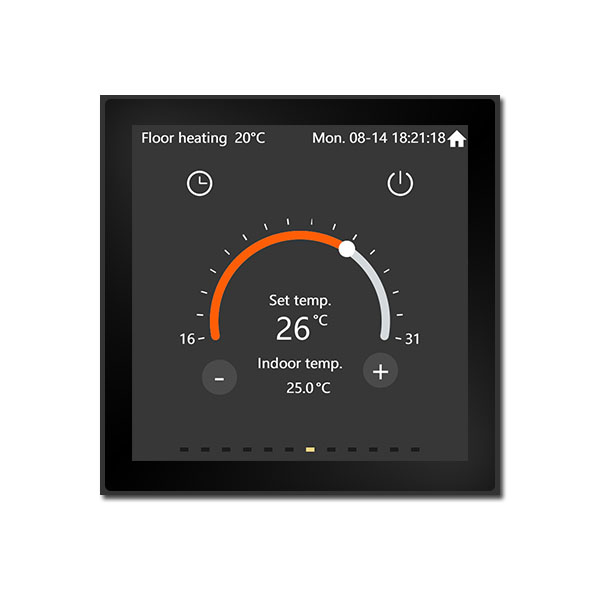

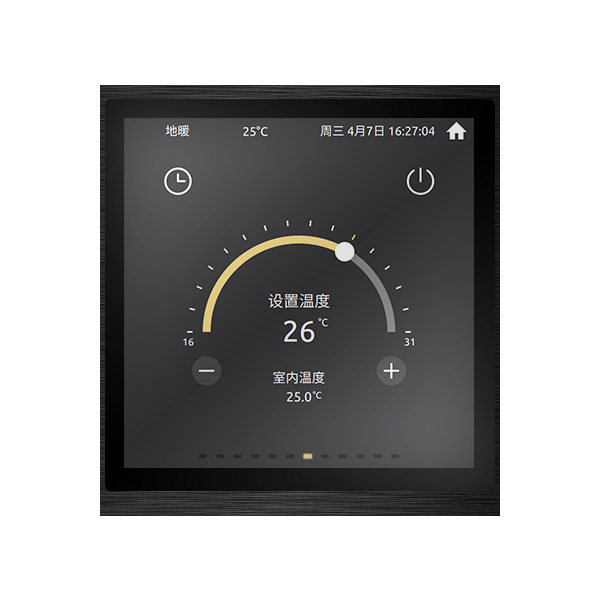

Floor heating system control function

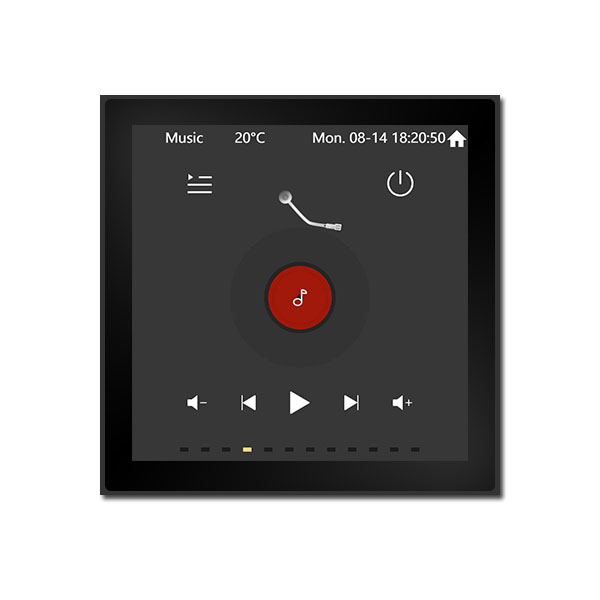

Background music control

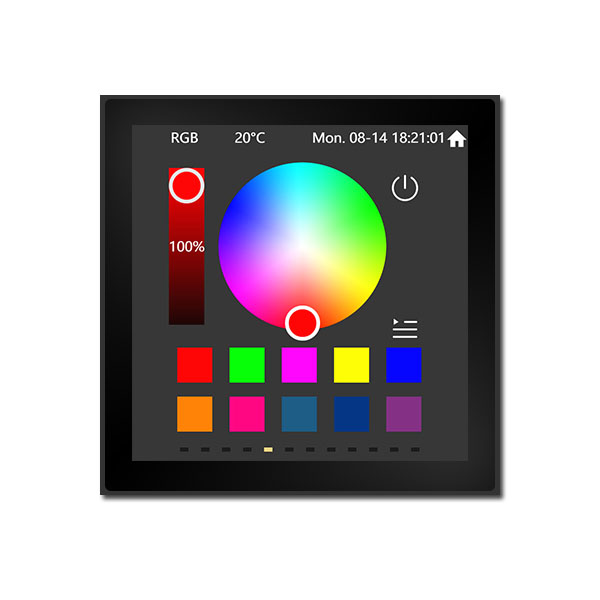

RGB light strip color control
The value of the air quality sensor can be displayed
Can display energy value or user-defined data
8 groups of timer settings
Logic control, which can realize the AND or XOR control of different combinations of logic
Up to 12 pages can be configured, and each page can be configured with different functions according to needs
Bus voltage
| 21...30 V DC, bus supplied
|
Bus current consumption
| < 12 mA |
Bus power consumption
| Max. 360 mW |
Auxiliary voltage | 12-30V DC |
Auxiliary power consumption | < 5W |
Programming button | Assign physical address |
Programming indicator | The red light allocates physical addresses, the green light flashes, and it runs normally |
Reset button | Reset screen display |
IP protection | IP20 EN60592 |
installation | 86 bottom case installation |
Length, width and height | 86x86x38(mm) |
weight | 1.5kg |
Work temperature
| – 5 °C ... + 45 °C |
Storage temperature | – 25 °C ... + 55 °C |
Transport temperature
| – 25 °C ... + 70 °C |
humidity | <93%, except for condensation
|
