KNX 10.1 Inch Touch Screen Panel

KNX 10.1 inch Smart Touch Screen PanelHigh-definition IPS display, resolution 1280*800 capacitive touch screenMulti-style homepage and sliding page dynamic switching, background and screen saver confi

  • Model: IMTP-1010.1
  • Size: 243x170x42mm

KNX 10.1 inch Smart Touch Screen Panel

  • High-definition IPS display, resolution 1280*800 capacitive touch screen

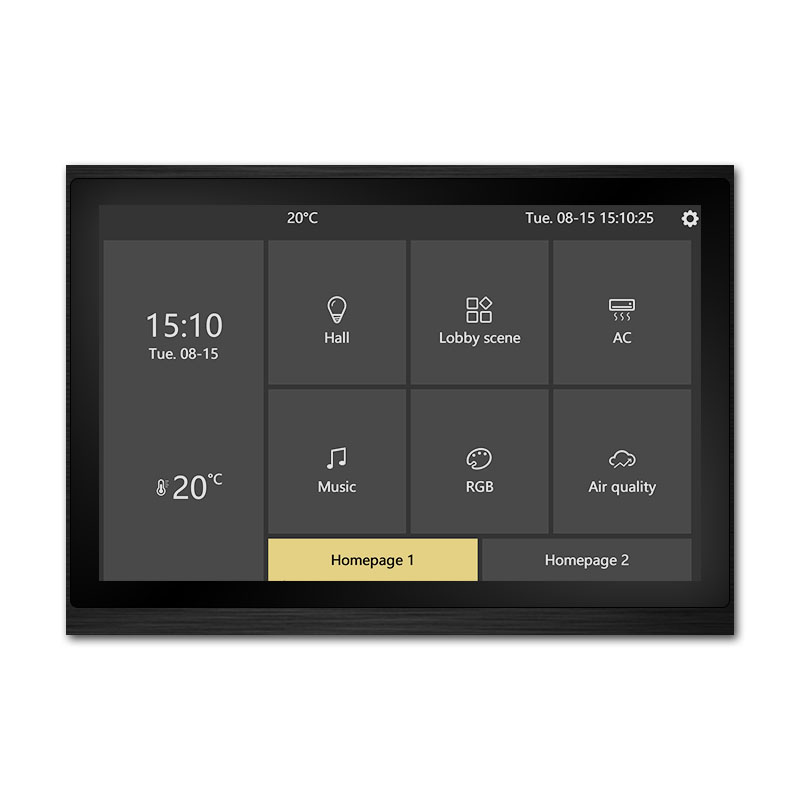

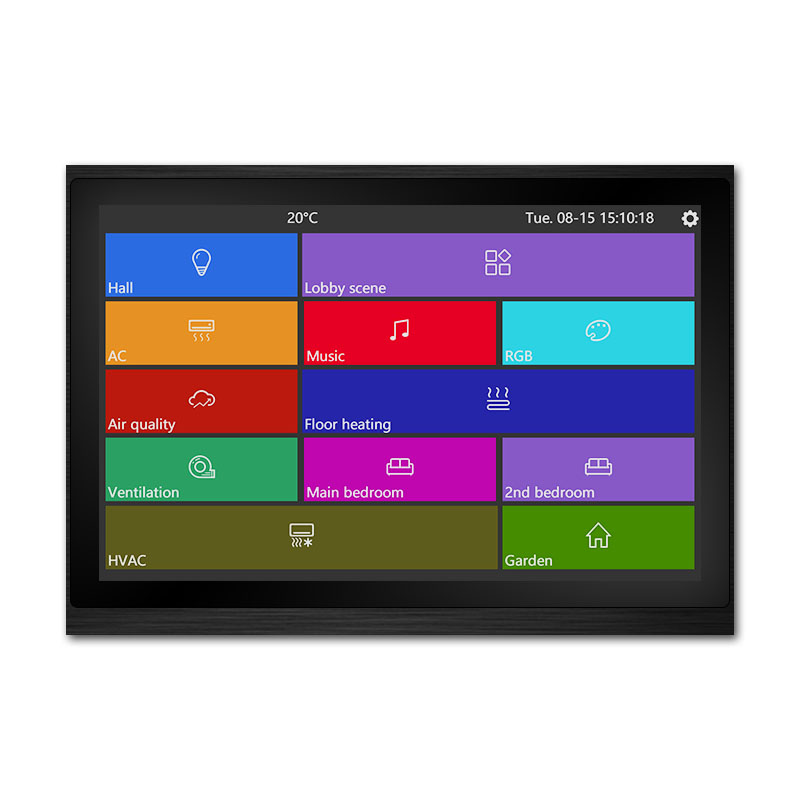

  • Multi-style homepage and sliding page dynamic switching, background and screen saver configurable

  • Time display and setting

  • Temperature display

  • With password lock screen function

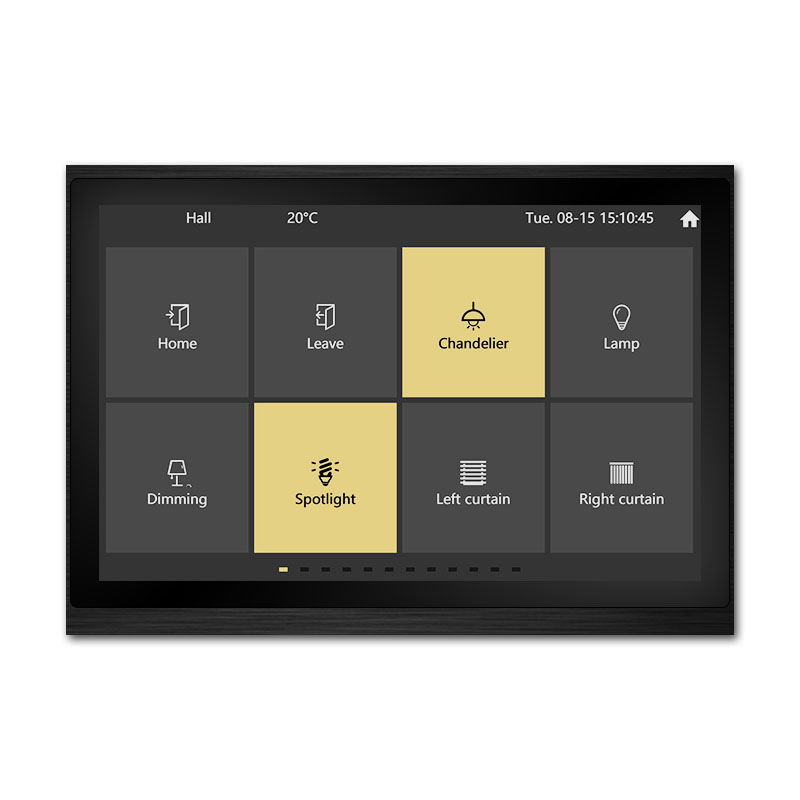

  • It can realize the functions of control switch, curtain, dimming and scene value sending

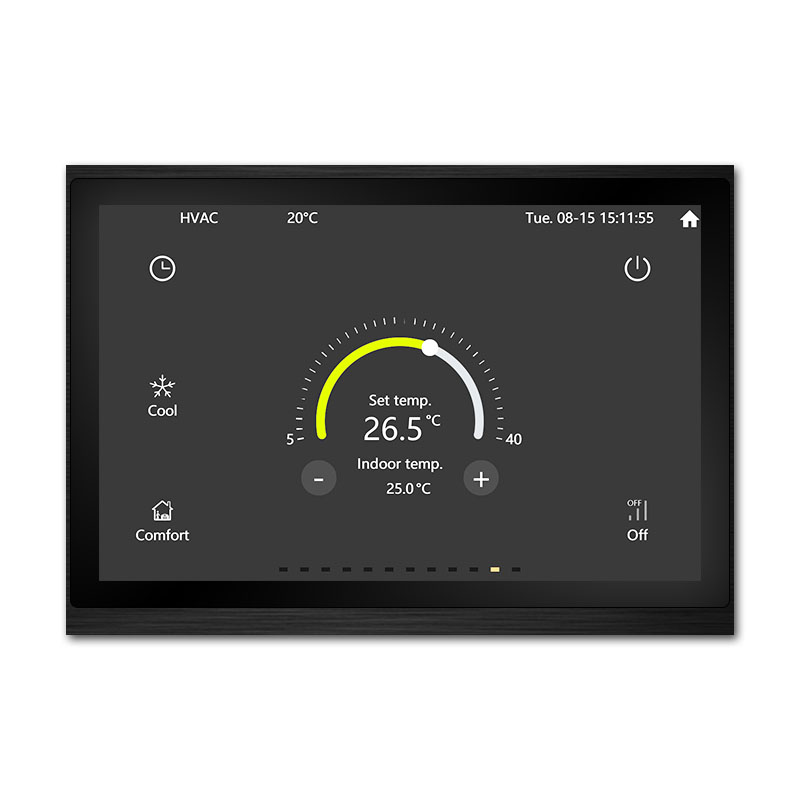

  • HVAC air conditioning control function

  • VRV air conditioning gateway control function

  • Fresh air system control function

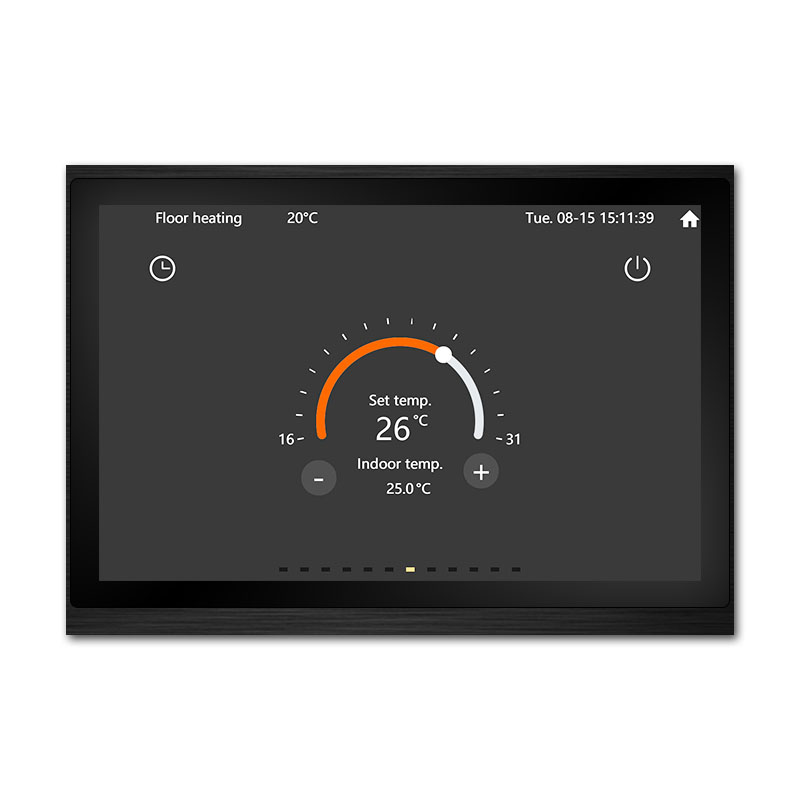

  • Floor heating system control function

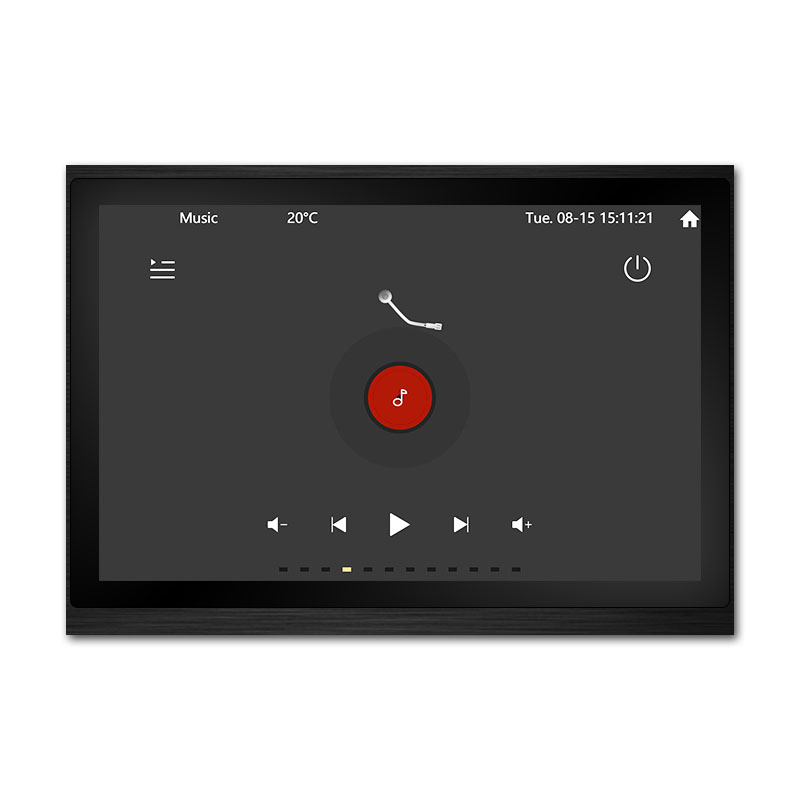

  • Background music control

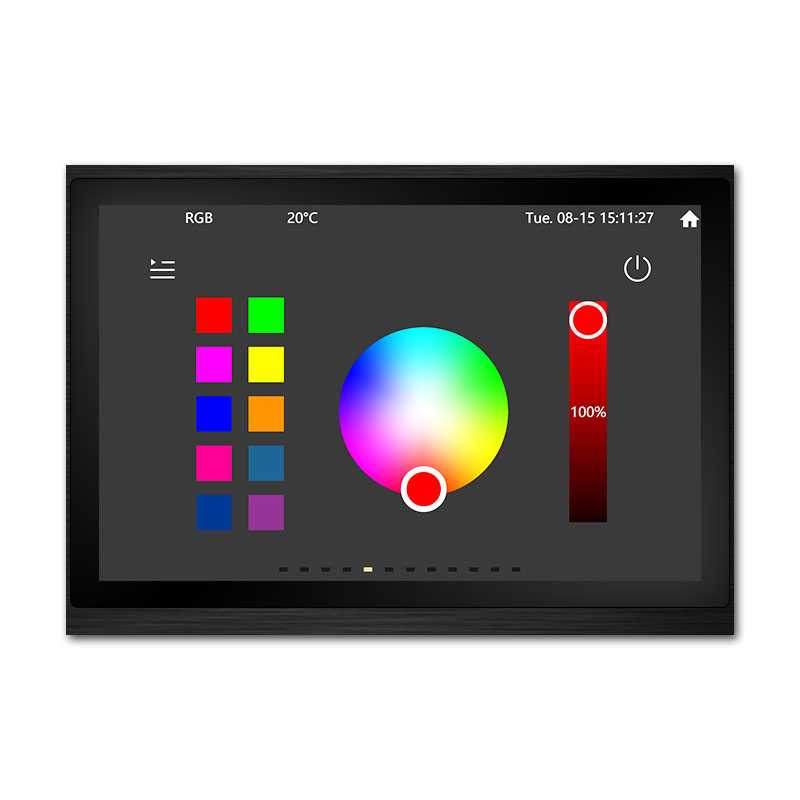

  • RGB light strip color control

  • The value of the air quality sensor can be displayed

  • Can display energy value or user-defined data

  • 8 groups of timer settings

  • Logic control, which can realize the AND or XOR control of different combinations of logic

  • Up to 12 pages can be configured, and each page can be configured with different functions according to needs



Bus voltage

21...30 V DC, bus supplied

 Bus current consumption

< 12 mA

Bus power consumption

 Max. 360 mW

Auxiliary voltage

           12-30V DC

Auxiliary power consumption

  < 5W

Programming button

Assign physical address

Programming indicator

The red light allocates physical addresses, the green light flashes, and it runs normally

Reset button

Reset screen display

IP protection

IP20 EN60592

installation

  86 bottom case installation

Length, width and height

                      243x170x42(mm)

weight

1.5kg

Work temperature

– 5 °C ... + 45 °C

Storage temperature

– 25 °C ... + 55 °C

Transport temperature

– 25 °C ... + 70 °C

humidity

<93%, except for condensation






Paper package
