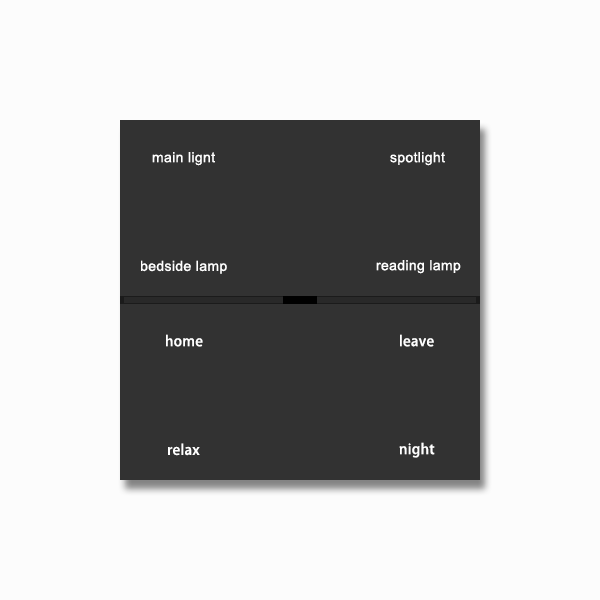

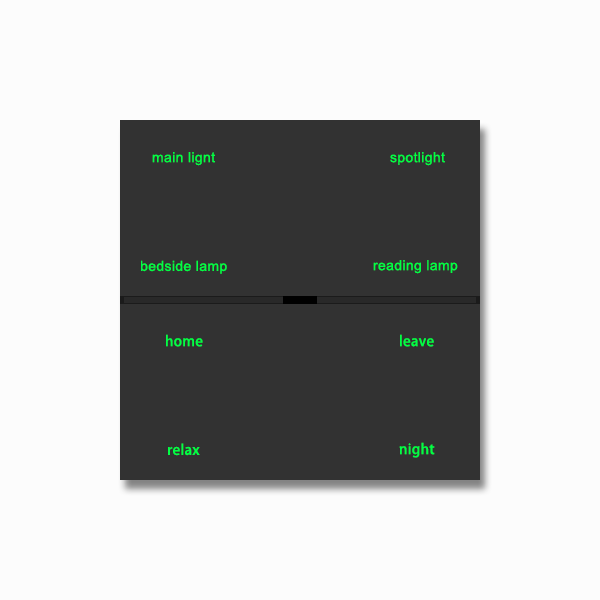

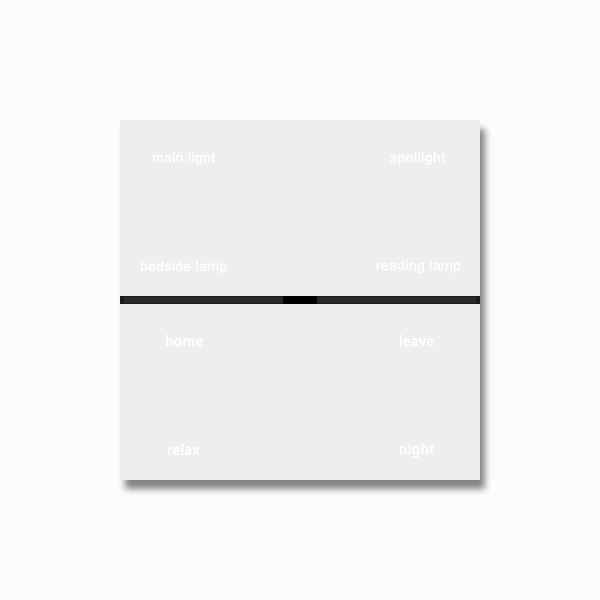

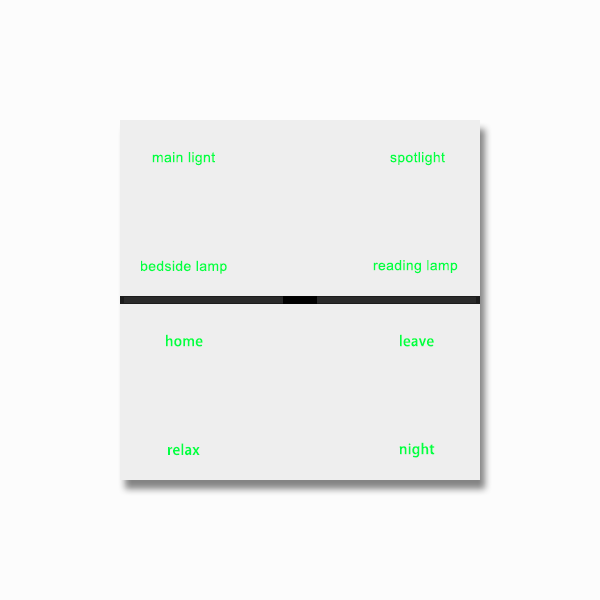

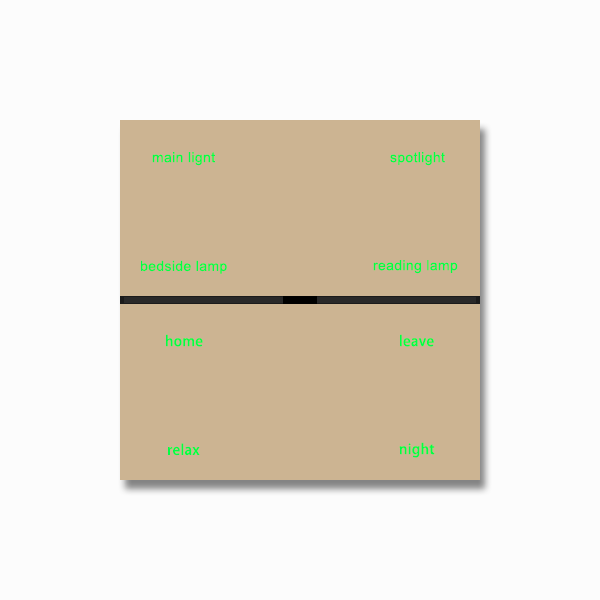

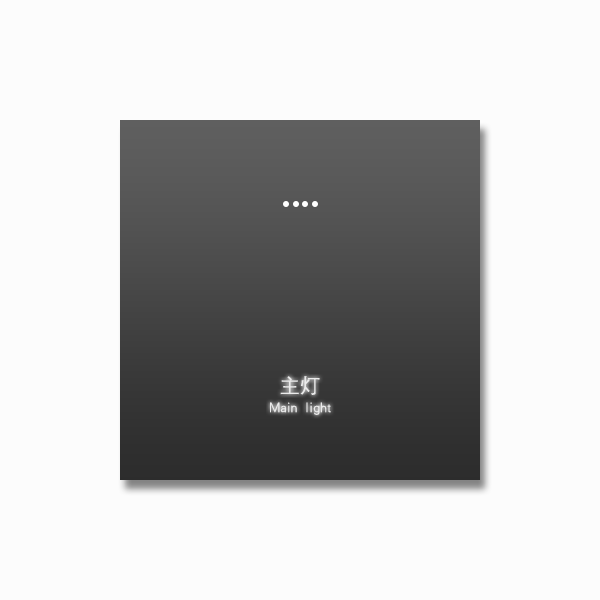

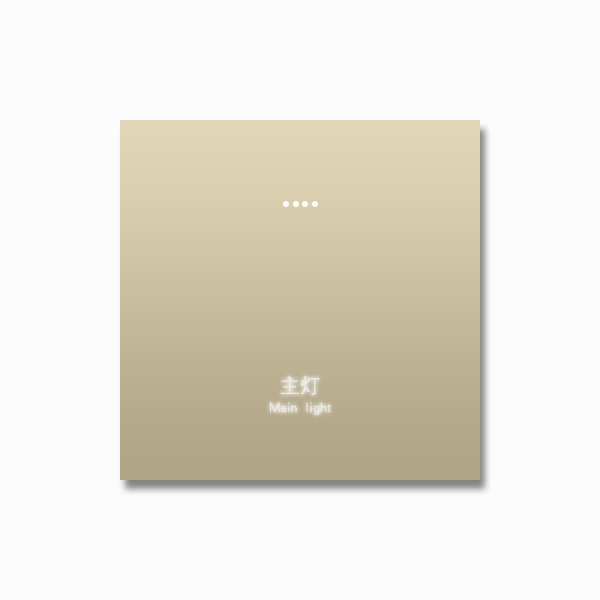

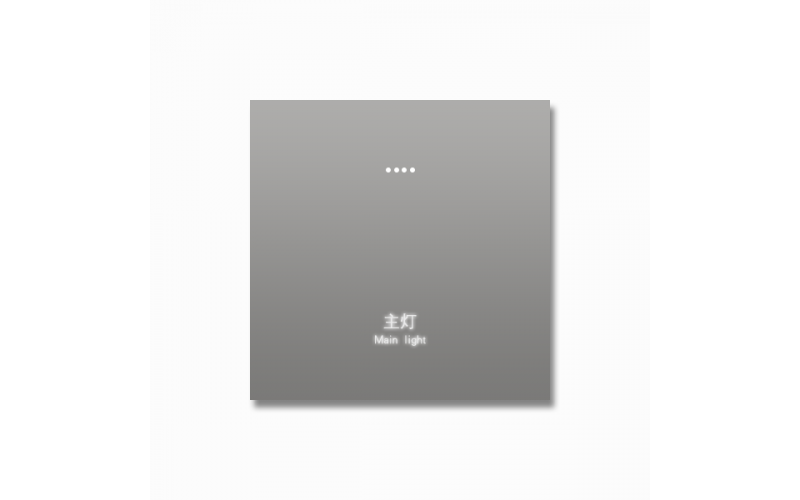

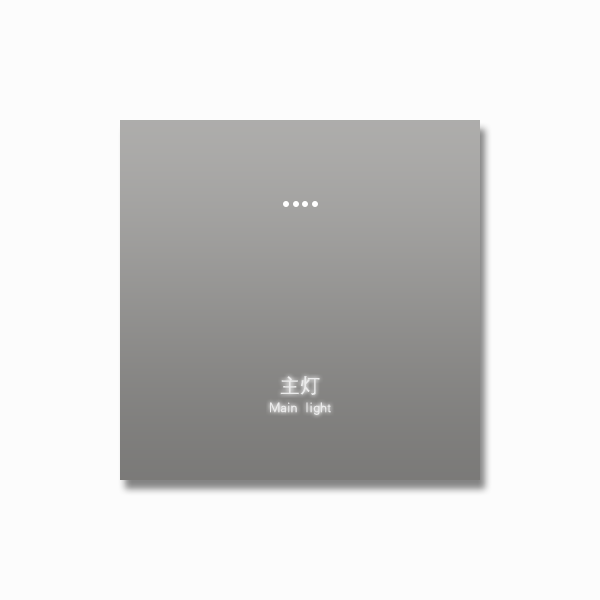

This product can be used to control actuators such as switches, curtains, and dimming. It can be installed as a system through the EIB/KNX bus and the actuator module.The main functions of the product
This product can be used to control actuators such as switches, curtains, and dimming. It can be installed as a system through the EIB/KNX bus and the actuator module.
The main functions of the product are summarized as follows:
Switch function
Shutter function
Dimming function
Value sending function
Recall and store scene function
Sequence function
LED function indication and word light indication function
Logic function
POWER | Bus power | 21-30V DC, obtained through EIB bus |
EIB/KNX current consumption | <12mA | |
EIB/KNX power consumption | <360mW | |
Auxiliary power supply | 21-30V DC | |
Power consumption | <1.5W | |
Operation instruction | Red LED and button | Programming physical address |
Green LED | Indicates that the application layer is working properly | |
Temperature range | Work | –5°C ... 45°C |
Storage | –25°C ... 55°C | |
Transport | –25°C ... 70°C | |
Design | Embedded installation equipment | |
size | 86×86mm | |
Installation | Standard 86 box wall mounting method | |
Weight | 0.15KG | |
Shell/color | custom made | |
Paper package
